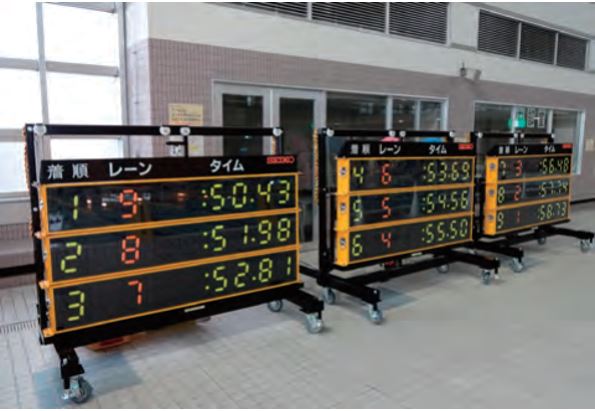

Built-Up Type Scoreboard
Portable & Modular Scoreboard for Swimming Competitions
The SB-5010 Built-Up Type Scoreboard is a flexible and portable display solution designed for swimming competitions and aquatic sports facilities. Its modular construction allows multiple display units to be combined according to the number of lanes being used, making it suitable for different competition formats and pool configurations. With support for up to 11 lane display units, a viewing distance of approximately 100 metres, adjustable stand height, and battery-powered operation, the SB-5010 offers a practical solution where easy installation, relocation, and visibility are important.
Modular Display for Any Pool Configuration
The SB-5010 features a modular lane display system where up to 11 individual display units can be assembled into a single scoreboard. This flexibility allows aquatic facilities to configure the scoreboard precisely according to the number of competition lanes being used, adapting easily to different pool layouts and competition formats.
High Visibility & Large Characters
Equipped with electromagnetic 7-segment displays featuring large 200 mm character heights, the scoreboard delivers clear and easy-to-read race information. Under suitable conditions, the display is visible from approximately 100 metres away, ensuring swimmers, officials, and spectators can easily view the results.
Portable & Battery-Powered Operation
Powered via an external battery connected to the SB-5020 controller, the scoreboard operates without relying on a fixed power connection. Combined with the adjustable PL-04S stand, this battery-powered design allows for easy relocation, quick installation, and flexible positioning around the pool deck.
Key Features
Modular Lane Display System
Up to 11 display units can be assembled into a single scoreboard according to the number of competition lanes.
Suitable for Multiple Pool Configurations
The scoreboard can be configured with the required number of display units to match any pool setup.
Excellent Viewing Distance
Characters can be viewed from approximately 100 metres under suitable conditions for clear spectator visibility.
Adjustable Stand Height
The height of the PL-04S scoreboard stand can be adjusted as required for optimal viewing angles.
Fixed or Portable Configuration
Can be set up as a fixed-type scoreboard or easily relocated as a portable unit depending on facility needs.
Battery Powered
External battery operation allows the scoreboard to be relocated easily without depending on a fixed power connection.
Large 200 mm Characters
Electromagnetic 7-segment display provides clear, large, and easy-to-read race information.
Single-Lane Display Unit
Each SB-5010 unit is designed to display information for one swimming lane, allowing modular expansion.
Durable Construction
Designed for reliable and robust operation in demanding competition environments.
| Technical Specifications | |
|---|---|
| SB-5010 | |
| Built-Up Type Scoreboard | |
| 1 Lane Display Unit | |
| Up to 11 units per scoreboard | |
| Approx. 100 m | |
| DC 12 V | |
| Supplied to controller SB-5020 from an external battery | |
| Electromagnetic 7-segment type | |
| 200 mm | |
| W 2030 × H 330 × D 150 mm | |
| Approx. 22 kg | |
| PL-04S, adjustable height | |
Flexible Display for Professional Competitions
The SB-5010 Built-Up Type Scoreboard provides a flexible, high-visibility display solution for swimming competitions. Its modular design allows facilities to customize the scoreboard size based on lane count, while battery-powered operation and an adjustable stand ensure easy setup and portability for any aquatic event.
Advantages of Poolum Top-Mounted Sand Filters
- Modular design scales up to 11 lanes.
- Flexible configuration for various pool layouts.
- Visible from approximately 100 metres.
- Large 200 mm character height for clear readability.
- Adjustable stand height for optimal viewing angles.
- Battery-powered for easy relocation and setup.
- No dependency on fixed power connections.
- Durable construction for competitive environments.
- Ideal for both fixed and portable applications.
Scalable and Visible Timing Displays
The SB-5010 Built-Up Type Scoreboard offers a scalable, high-visibility display solution for professional swimming competitions. With its modular assembly, battery-powered portability, and large electromagnetic characters, it provides a practical and reliable scoreboard system for any aquatic sports facility.
